BoxSmith

Enter the inside size and board thickness, see the box folded in 3D, and download a 1:1 cutting template.

Open the studioUnlimited exports — $3

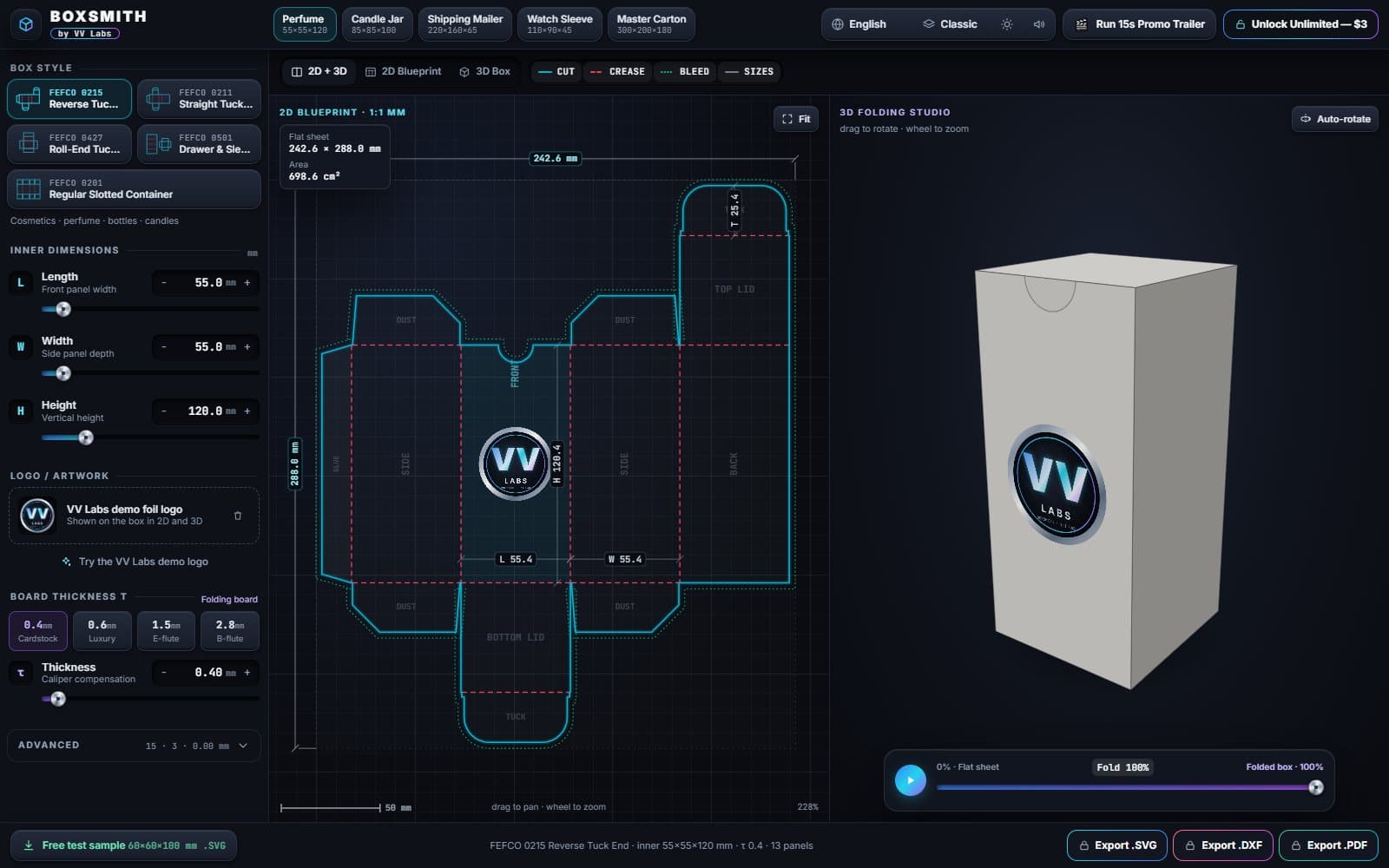

Actual BoxSmith screen: 2D blueprint next to the folded 3D box
The actual app · no mockup

A box that closes the first time.

Choose one of five FEFCO styles: reverse or straight tuck end, mailer, drawer and sleeve, or shipping carton. BoxSmith adds the allowances your board thickness needs, so the box does not close short.

Export SVG, DXF or PDF at exact 1:1 scale with separate cut, crease and bleed layers for a laser cutter, Cricut or print shop. The studio and a 60×60×100 mm sample are free.

From blueprint to box

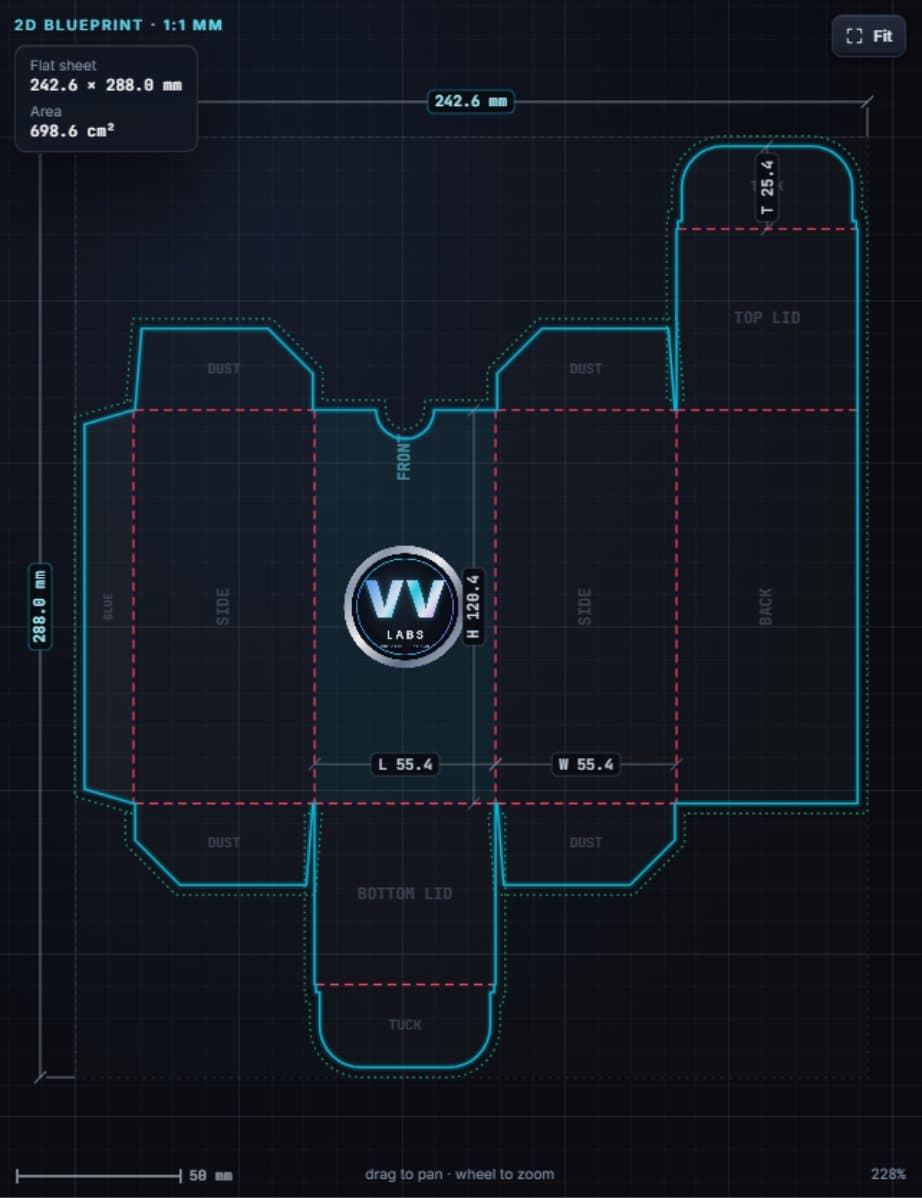

BoxSmith 2D blueprint with cut, crease and bleed lines and millimetre sizes
A cutting template that actually closes

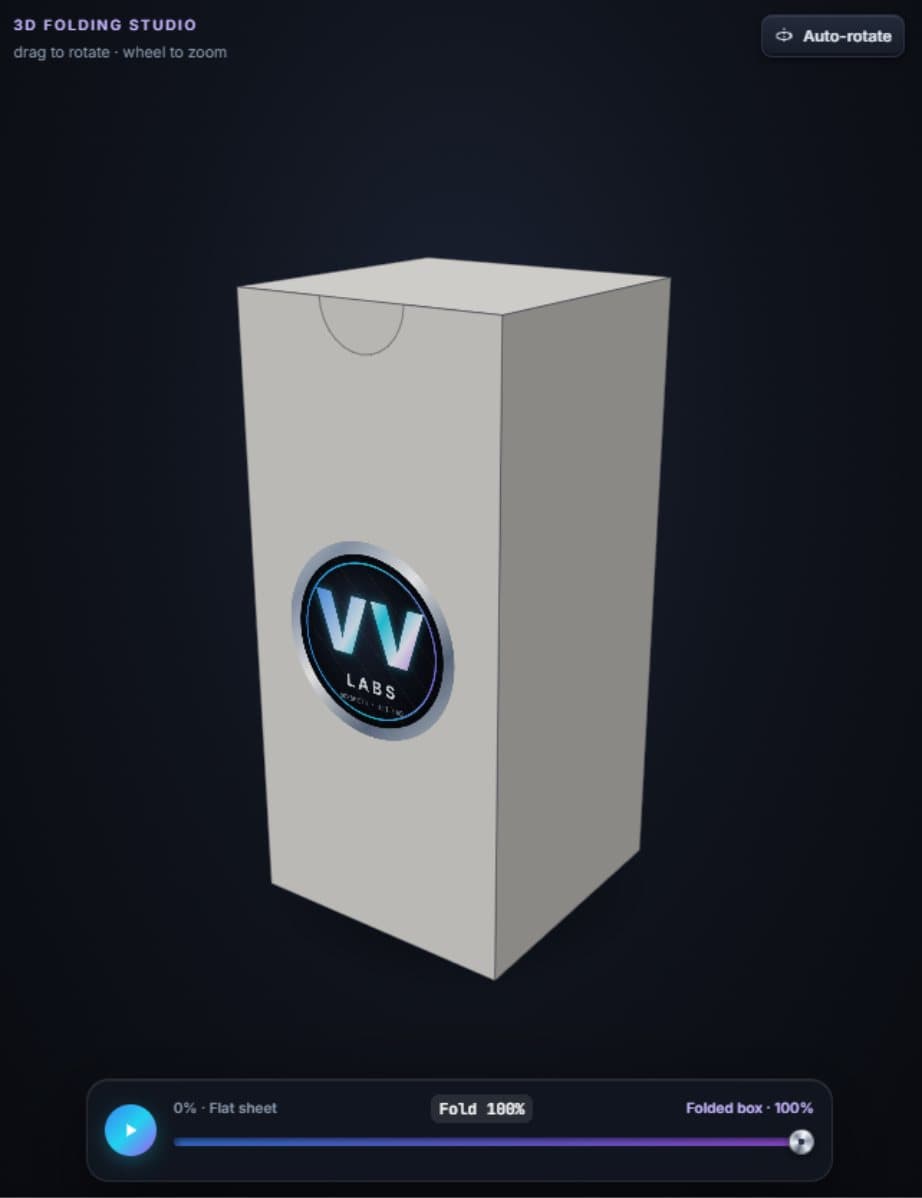

BoxSmith 3D view of a folded tuck-end box with a logo on the front
Watch the flat sheet fold into the box
